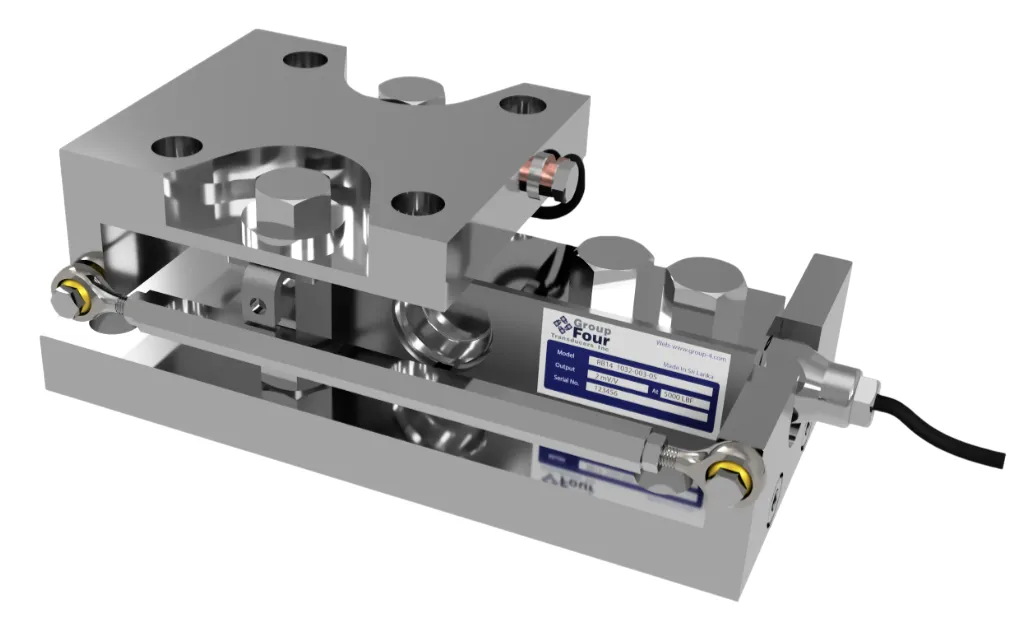

RB14-WM (1000WM5) Stainless Steel Shear Beam Weigh Module IP68
Capacity: 500lb to 5,000lb
Made from stainless steel, this weigh module using a rocker pin design with uplift protection as well as the optional lateral/anti-sway protection, makes this an ideal solution for weighing tanks, bins and hoppers.
- Capacity range: 500lb to 5,000lb
- Stainless steel construction
- Environmental Protection IP68
- Designed for easy installation
- Low profile design
- Optional anti-sway design feature
- Primarily designed for use in hopper, mixer and platform scale applications
![image](https://www.groupfourtransducers.com/wp-content/uploads/2019/10/1000WM5-Wiring1.png)
![image](https://www.groupfourtransducers.com/wp-content/uploads/2019/10/1000WM5-Wiring1.png)
![image](https://www.groupfourtransducers.com/wp-content/uploads/2022/12/Screen-Shot-2023-11-03-at-1.22.19-PM.png)
![image](https://www.groupfourtransducers.com/wp-content/uploads/2022/12/Screen-Shot-2023-11-03-at-1.22.19-PM.png)
- Check link anti-sway protection
