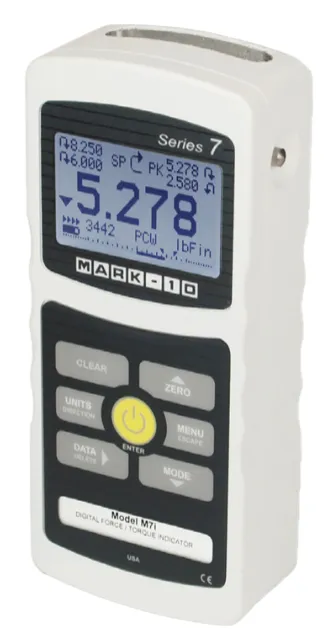

The 7i professional digital force/torque indicator is designed to work with a wide range of remote force and torque sensors. Exclusive Plug & TestTM technology allows all calibration and configuration data to be saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition to the 5i indicator, the 7i features high speed continuous data capture and storage, with memory for up to 5,000 readings, at an acquisition rate of up to 14,000 Hz. The 7i also features programmable footswitch sequencing, break detection, and 1st / 2nd peak detection. Coefficient of friction unit of measurement and a user-defined unit of measurement add flexibility for specialized applications. For productivity enhancement, the indicator also features automatic data output, data storage, and zeroing functions upon the completion of break detection, averaging, external trigger, and 1st / 2nd peak detection. The included MESURTM Lite data acquisition software tabulates continuous or single point data. Data saved in the indicator’s memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.
