G4610

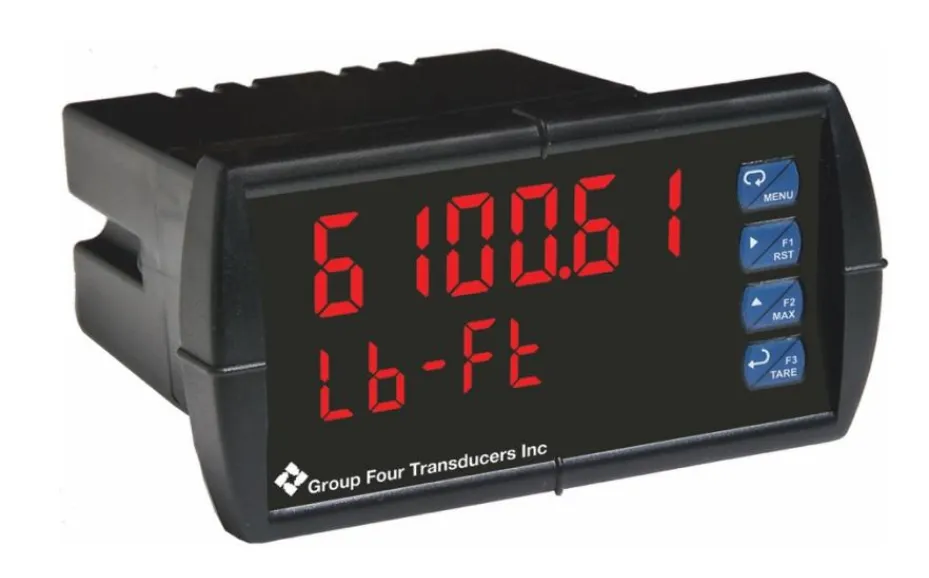

The G4610 is a full-featured multipurpose, easy-to-use digital strain gauge & load cell meter ideal for weight and force measurement applications.

  • 15, 30, 150, 300 mV Unipolar Input Ranges.
  • ±15, ±25, ±150, ±250 mV Bipolar Input Ranges.
  • Selectable 5 or 10 VDC Sensor Excitation.
  • Supports up to twelve (12) 350 O Load Cells (Minimum Load Resistance of 28 O).
  • Capture or Programmable Tare Feature.
  • Auto-Zero Feature Eliminates Zero Drift.
  • Ratiometric Operation.
  • Max/Min or Peak/Valley Hold Feature.

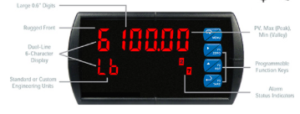

  • Large Dual-Line 6-Digit Display, 0.60″ & 0.46″.
  • Dual-Scale Feature – Single Input.
  • Rounding Function 1, 2, 5, 10, 20, 50, or 100.
  • Programmable Display & Function Keys.
  • 32-Point Linearization.
  • NEMA 4X, IP65 Front.
  • Input Power Options Include 85-265 VAC or 12/24 VDC.
  • 2 or 4 Relays + Isolated 4-20 mA Output Options.

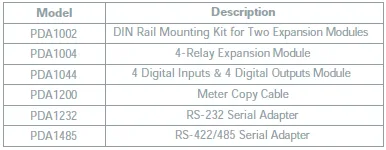

  • External 4-Relay & Digital I/O Expansion Modules.
  • USB, RS-232, & RS-485 Serial Communication Options.
  • Modbus® RTU Communication Protocol Standard
  • Configure, Monitor, and Datalog from a PC with Free MeterView® Pro Software.
