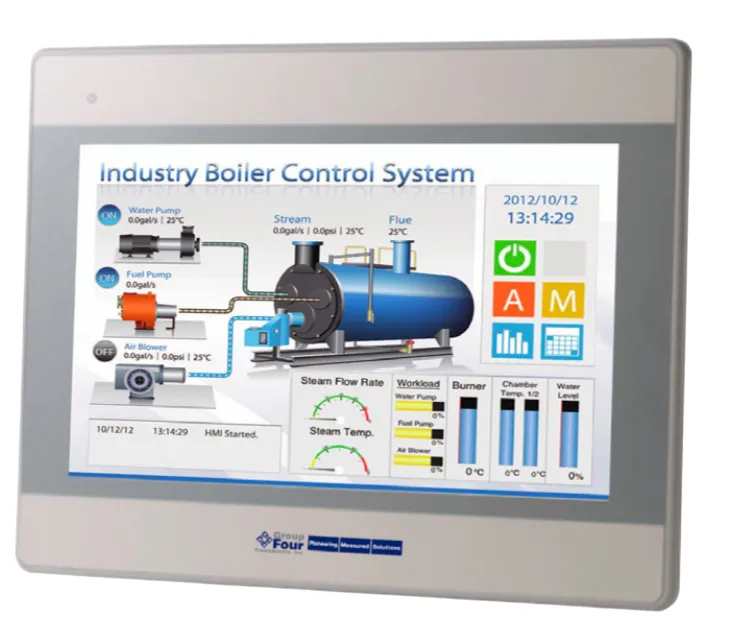

4470 Digital HMI
Group Four Transducer’s Digital HMI display 4470 offers 7” touchscreen TFT, LED backlit display for digital load cells. It shows load values, force values, allows you to set the digital load cell parameters, calibrate it and display its readings. Its software is customizable, and application based.

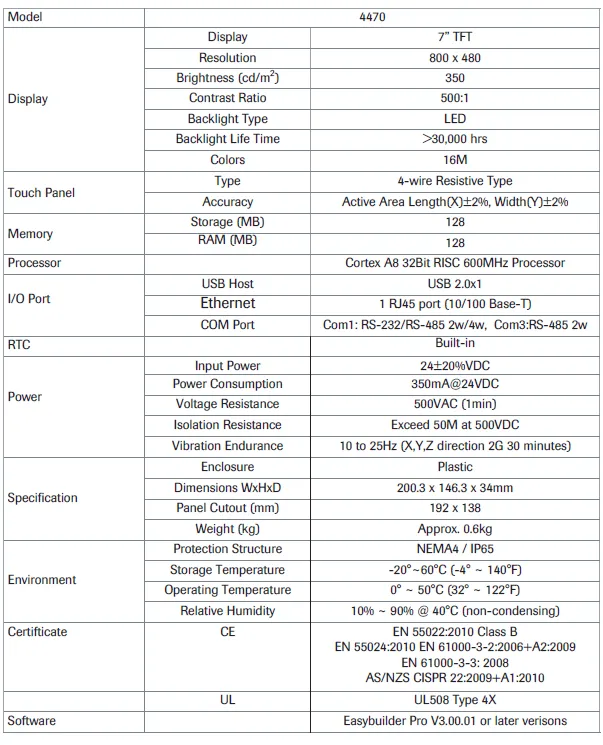

View Datasheet
- 7” 800×480 TFT LCD, LED Backlight
- Slim design
- PCB coating process ensures high reliability to resist from corrosive in harsh environment

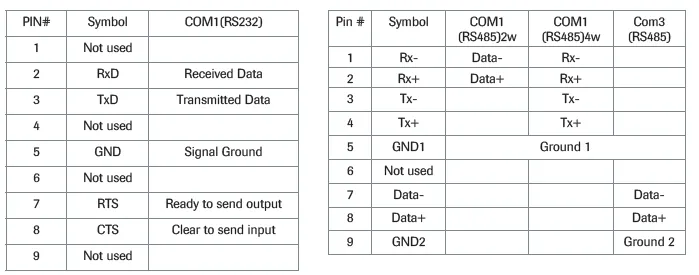

- Com1/Com3 RS485 dual isolation design ensures reliable operation in complex grounding application
- Fan-less cooling system
- NEMA4/IP65 compliant front panel
- Specially developed for Group Four’s digital load cells
- Use it for displaying load values, force measurements
- Digital load cell parameter setting
- Digital load cell calibration
- Customizable
- Easy-builder software
- Digital load cells
- 4.3″ & 10″
